REX-1 Remote Initiation System
LONG RANGE: 25 km initiation range in line of sight zone. Retransmitter can be used to increase initiation range or reach non-line of sight points.
OVERCOMING DIFFICULT TERRAIN: Signal amplification through retransmitters or drone repeaters ensures reliability in challenging terrain.
INCREASED RESISTANCE TO ELECTRONIC WARFARE: Passive system design and smart modulation increase resistance to interference.
LONG LASTING BATTERY: Up to 140 days standby time at 20°C. Resistant to heat, cold, and humidity. Ideal for long-term missions.
Security Features
• Encrypted communication to prevent inadvertent initiation
• Chirp-based communication with high bandwidth and low chirp spread
• Increased resistance to interference and jamming
• Protection from hacking and firmware extraction
• Password-protected access
• Code-protected initiator pairing
Safety Features
• Static charge accumulation protection
• Initiator lock function
• Safe time delay
• Confirmation required before detonation

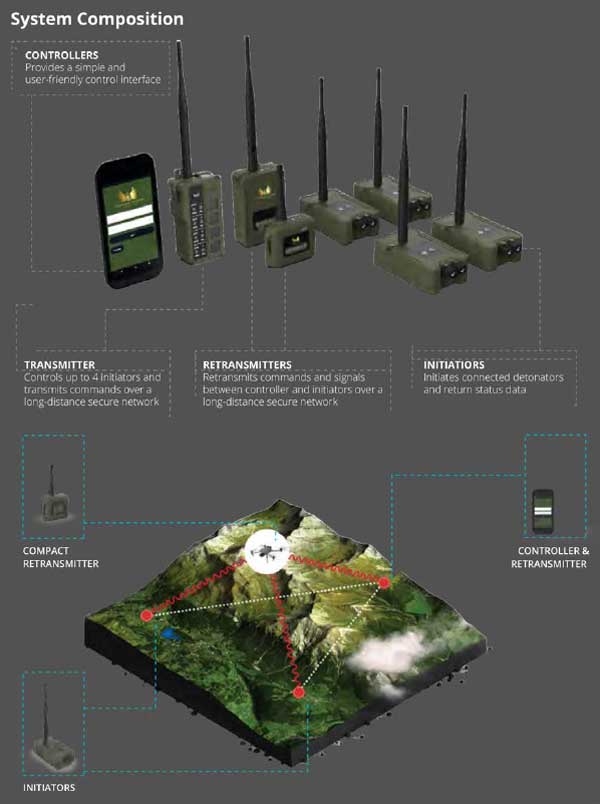

REX-1 system overview showing controllers, transmitters, retransmitters, and initiators
Next-Generation Remote Initiation System Datasheet
REX-1 System
| Effective line of sight range | 25 km (can be increased with repeater) |
| Security | Chirp based communication, high bandwidth, low chirp spread factor |
| Safety | 3 Safety levels detonation: • 3-minute safety delay • Arm mode required • Confirmation required |
| Lock | Locks capacitor in specific conditions |
| Multiple controllers | Can connect to a single initiator |
| Group detonation | Single initiation can detonate multiple initiators |
| NSN | 375-47-001-1447 |

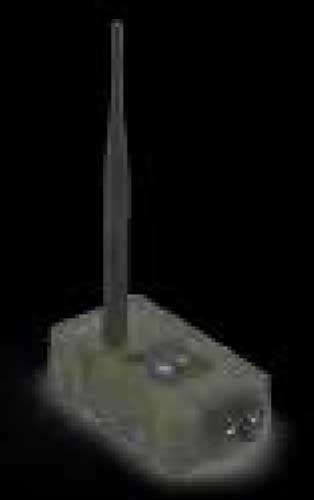

Initiator (REX-1RX)
| Initiation power | 1.68 Joule |
| Initiation voltage | 15 Volts |
| Water/dust resistance | IP67 |
| Dimensions | 136x40x67mm |
| Weight | 265g |
| Battery standby time | Up to 140 days @ 20°C |
| Temperature range | -32°C to +49°C |
| Color | Olive Green (RAL6003) |
| NSN | 1375-47-001-1449 |
Retransmitter (REX-1RTX)
| Encryption | AES-256 |
| Resistance | IP67 |
| Dimensions | 112x136x77mm |
| Weight | 215g |
| Battery standby | Up to 37 days @ 20°C |
| Temperature range | -32°C to +49°C |
| Color | Olive Green (RAL6003) |
| NSN | 5820-47-001-1450 |

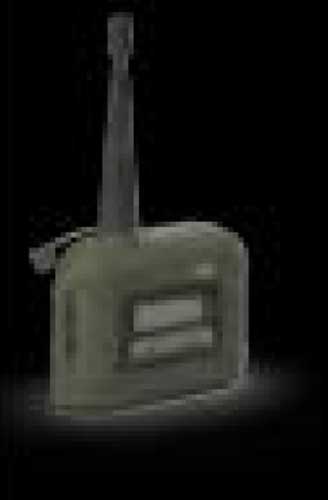

Compact Retransmitter (REX-1cRTX)
| Encryption | AES-256 |
| Resistance | IP67 |
| Dimensions | 67x76x28mm |
| Weight | 92g |
| Battery standby | Up to 7 days @ 20°C |
| Temperature range | -32°C to +49°C |
| Color | Olive Green (RAL6003) |

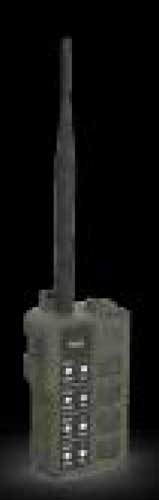

Controller Blaster (REX-1BTR)
| Encryption | AES-256 |
| Resistance | IP67 |
| Dimensions | 127x66x37mm |
| Weight | 260g |
| Battery standby | Up to 112 days @ 20°C |
| Functions | Arming, Detonation |
| Color | Olive Green (RAL6003) |

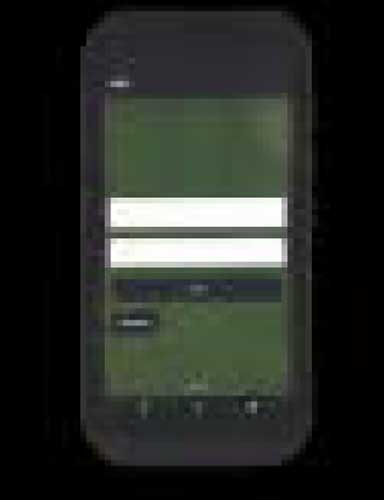

Controller Application (REX-1APP)
| Platform | Android OS |
| Paired Initiators | Up to 50 |
| Group Detonation | Yes |
| Status Feedback | Signal, Battery, Chain Status |
| NSN | 7030-47-001-1448 |
