ReXTeC Top View

RAVTEK ReXTeC

The ReXTeC is an extremely quiet fixed wing airframe that can be deployed for non-stop flight missions of up to 180 minutes. With a standard transmission distance of 15 km using our handheld controller and up to 50 km with the optional sector antenna (all on 5.8 GHz with HD video).

With its VTOL configuration and simple setup, the ReXTeC can be launched from confined spaces by a single operator with ease and confidence—no runway required. The modular cargo compartment can be adapted to carry a variety of sensors or custom payloads to fit specific mission requirements.

The ReXTeC provides VLOS strategic situational awareness either day or night, with the ability to broadcast securely to multiple locations, allowing users to view the live feed or control the drone from anywhere in the world utilizing LTE, Star Link, Satellite, or other internet connection.

With a low audible signature and minimal visual profile, it is ideal for covert operations. Designed to operate in GNSS-denied environments. Featuring intelligent return to launch mode and offering autonomous mission capability or the option to fly manually.

ReXTeC KEY FEATURES

  • 2.3 m wingspan
  • 8 kg standard mass with battery
  • 11 kg MTO
  • 3 kg payload capacity
  • Secure AES 256 encrypted wireless link
  • 56 kph max windspeed
  • Operating temperature: -20°C to +50°C
  • 5.8 GHz / 2.4 GHz frequency
  • Fully autonomous mission capability
  • 50 km maximum range

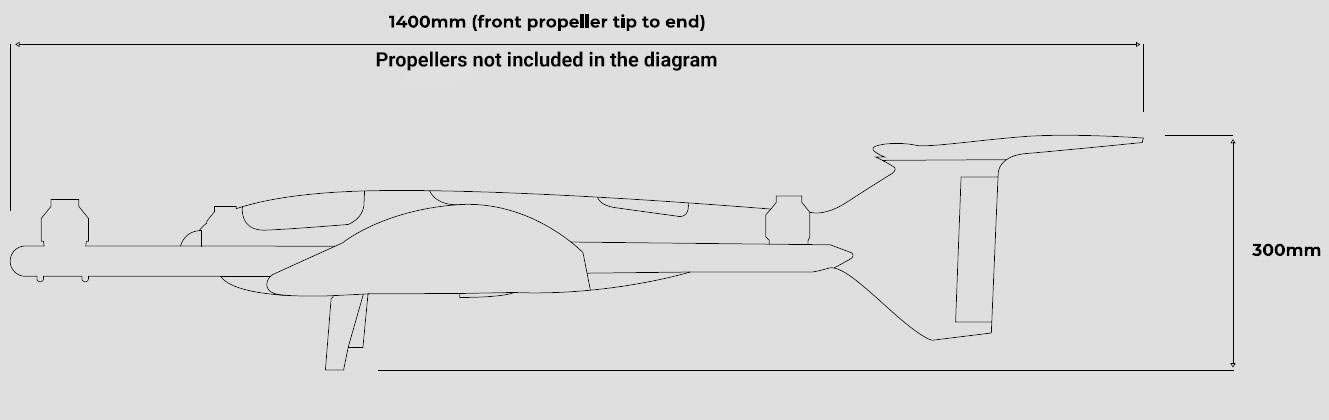

RAVTEK ReXTeC Diagram
Specification Value
Wingspan2.3 m
Dimensions1400 mm x 2300 mm x 300 mm
MTOW11 kg
Flight Time180 minutes
Max Windspeed56 kph
Transmission Range15 km / 50 km (sector antenna) / 300 km (LTE)
Frequency5.8 GHz / 2.4 GHz
Payload Capacity3 kg
Operating Temperature-20°C to +50°C
Autonomous NavigationYes

Table 1. ReXTeC Technical Specifications
